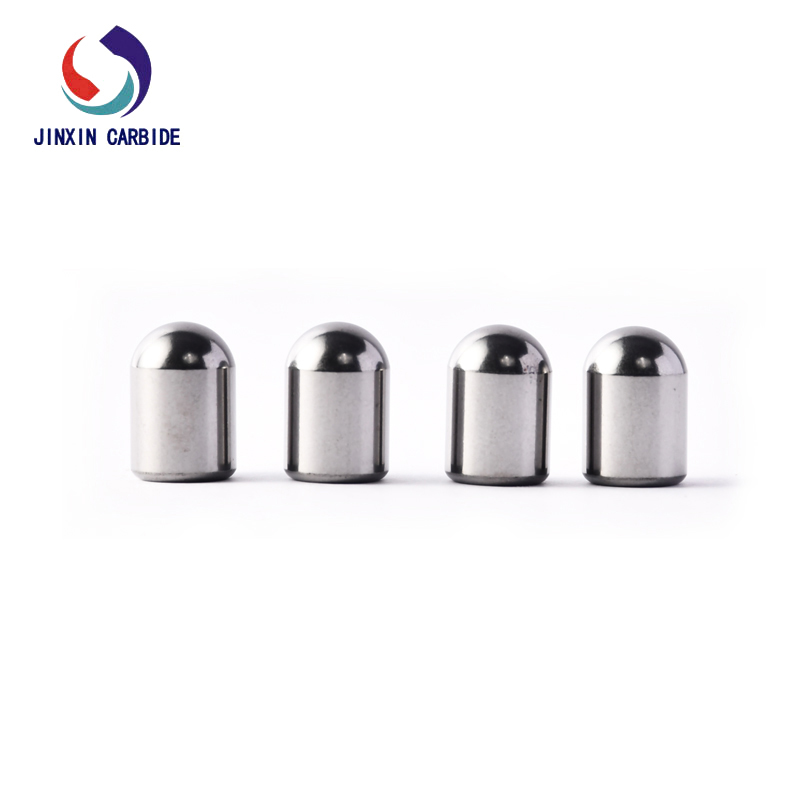

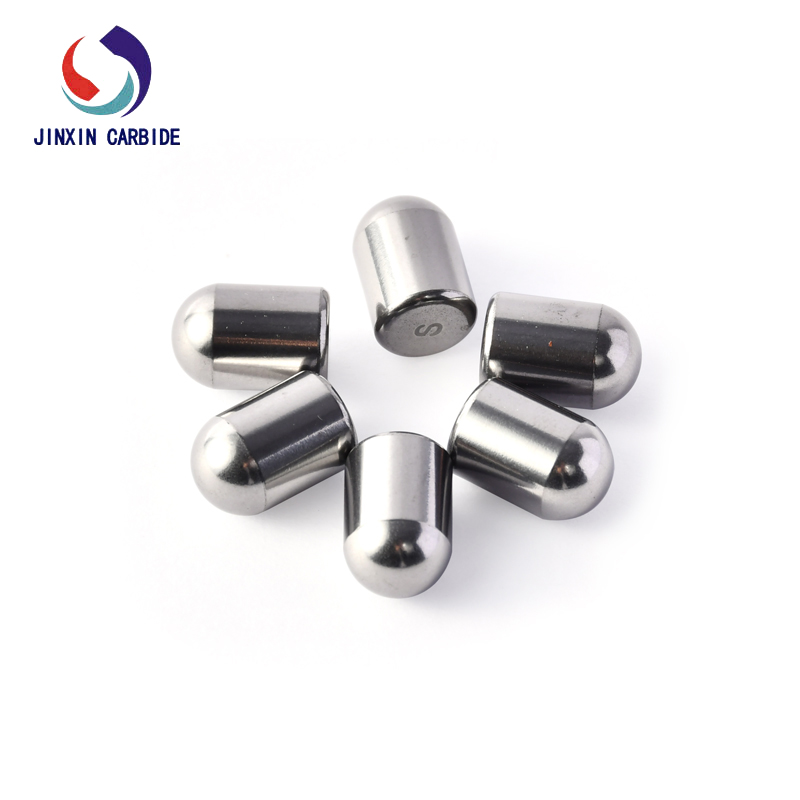

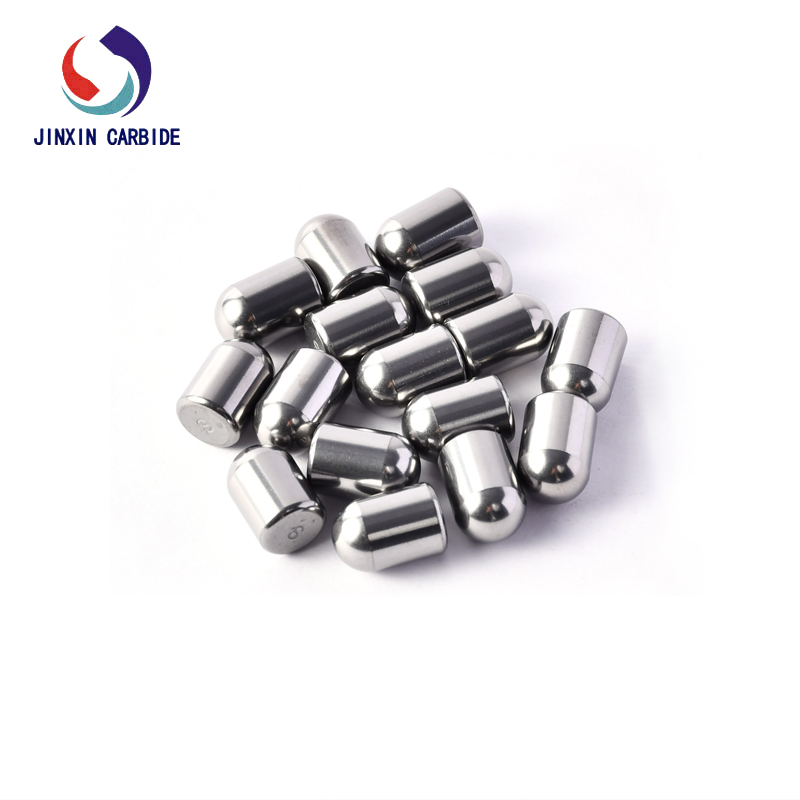

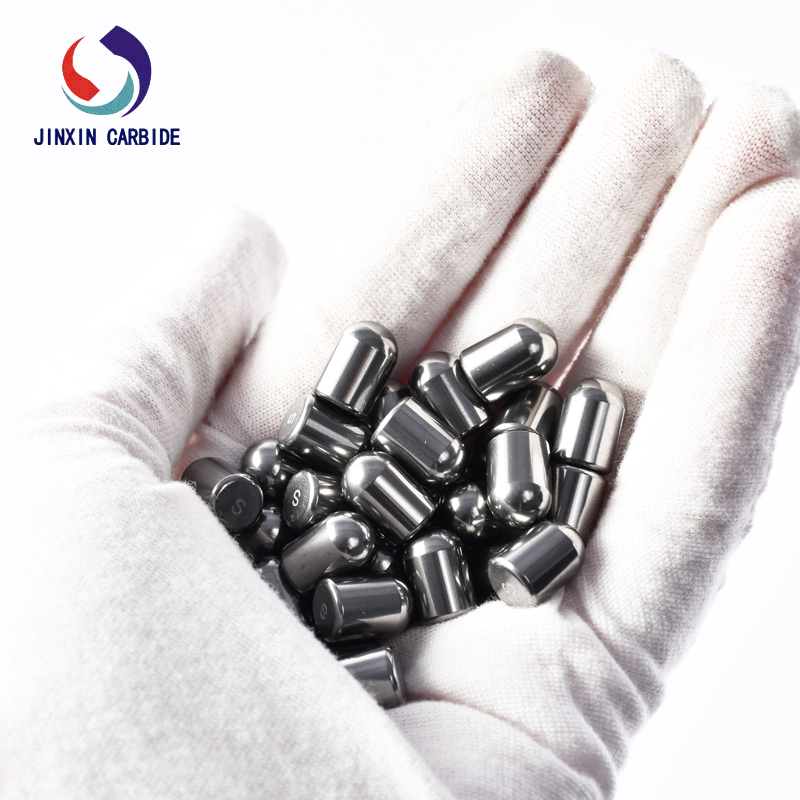

Tungsten Carbide Buttons Discription
Tungsten Carbide Buttons are an alloy material composed of hard compounds of refractory metals such as tungsten carbide (WC) powder and bonding metals such as cobalt (Co) or nickel (Ni) powder, which are widely used in mining, quarrying and cutting processes.

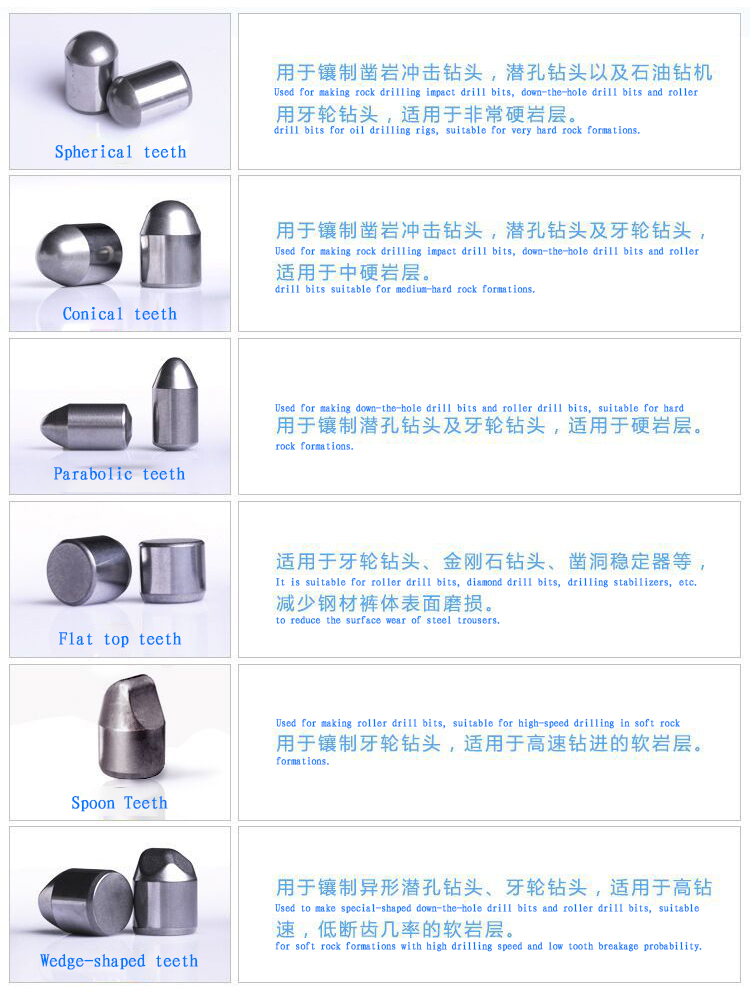

Depending on the design form, there are many types of Tungsten Carbide Button, including conical ball teeth, wedge teeth, coal pick teeth, road digging teeth, flat top teeth, sharp claw teeth, spoon teeth and mushroom teeth. Depending on the material composition, there are many grades of carbide ball teeth, including YG4C, YG6, YG8, YG8C, YG11C, YG13C and YG15C, etc., and the uses corresponding to different grades are different.
The ingenious design of Tungsten Carbide Button enables rapid energy saving under high load conditions. It adopts advanced hydraulic system technology, which can reduce energy loss and improve work efficiency. In addition, due to the precision processing of the ball teeth, it can achieve reliable power transmission, thereby reducing energy consumption.
Zhuzhou Jinxin's Tungsten Carbide Button is made of raw carbide material, which is composed of metal minerals such as tungsten, cobalt, and carbon. These materials make the button gear have high hardness and low wear characteristics. It can not only withstand heavy loads, but also has excellent corrosion resistance. The material of this product ensures its long service life and stable performance.
Tungsten Carbide Buttons grade and application
| Grade | Density | Toughness | Hardness | Properties and application references |
| g/cm3 | MPa | HRA | ||
| YG4C | 15.1 | 1800 | 90 | Mainly used as a small button for impact drills to cut soft and moderately hard formations. |
| YG6 | 14.95 | 1900 | 90.5 | Used in coring crowns, electric coal drilling bits, coal cutting picks, oil cone drilling bits and scraper drilling bits for geological exploration, coal mining and oil well drilling fields. |
| YG8 | 14.8 | 2200 | 89.5 | Used for coring crowns, electric coal drilling bits, coal cutting picks, oil cone drilling bits and scraping bits for geological exploration, coal mining, oil well drilling and snow clearing. |
| YK05 | 14.95 | 2500 | 90.5 | Mainly used as buttons for small and medium-sized percussion drills and as inserts for rotary prospecting drills for cutting soft and moderately hard formations. |
| YG8C | 14.8 | 2400 | 88.5 | |
| YK15 | 14.6 | 2450 | 87.6 | Suitable for rotational impact resistance of strip and conical buttons, geological exploration buttons, cutting soft and medium hard strata. |
| YK20 | 14.4 | 2500 | 86.8 | A button and blade used primarily to rotate impact drills to cut through moderately hard and hard formations. |
| YK25 | 14.4 | 2550 | 87.2 | Buttons for rotary percussion drills used primarily for cutting medium-hard and very hard formations. |
| YG11C | 14.4 | 2700 | 86.5 | Buttons primarily for percussion and silicone drills to cut medium-hard, hard and very hard formations. |
| YG13C | 14.2 | 2850 | 86 | Buttons for silicone drills and rotary percussion drills primarily used for cutting hard and very hard formations. |
| YG15C | 14 | 3000 | 85.5 | For use with oil cone drills for medium-soft and medium-hard rock. |

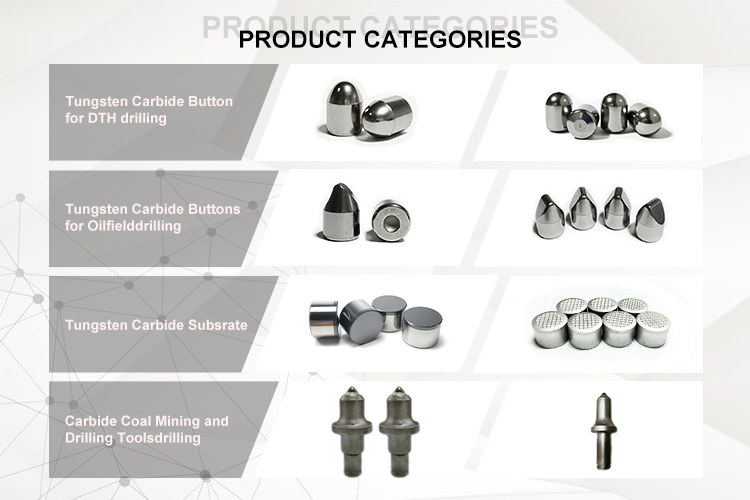

Tungsten Carbide Buttons categories and photos
