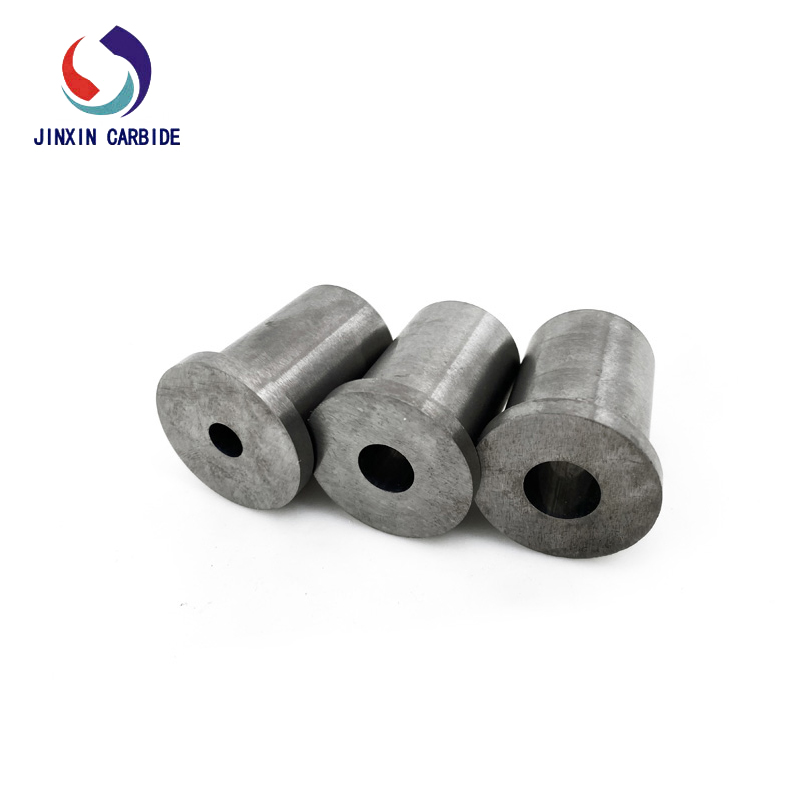

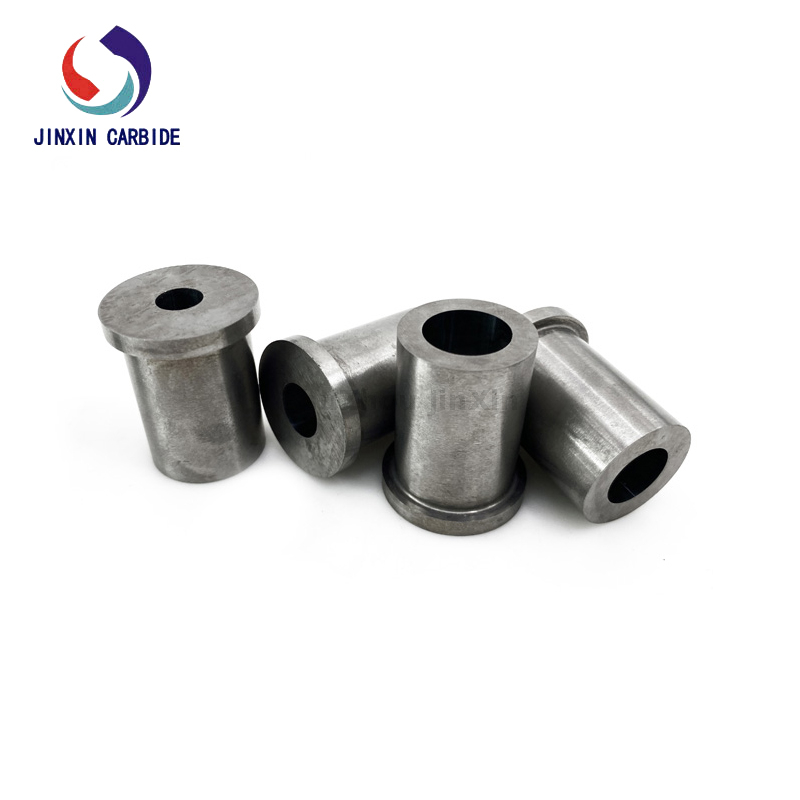

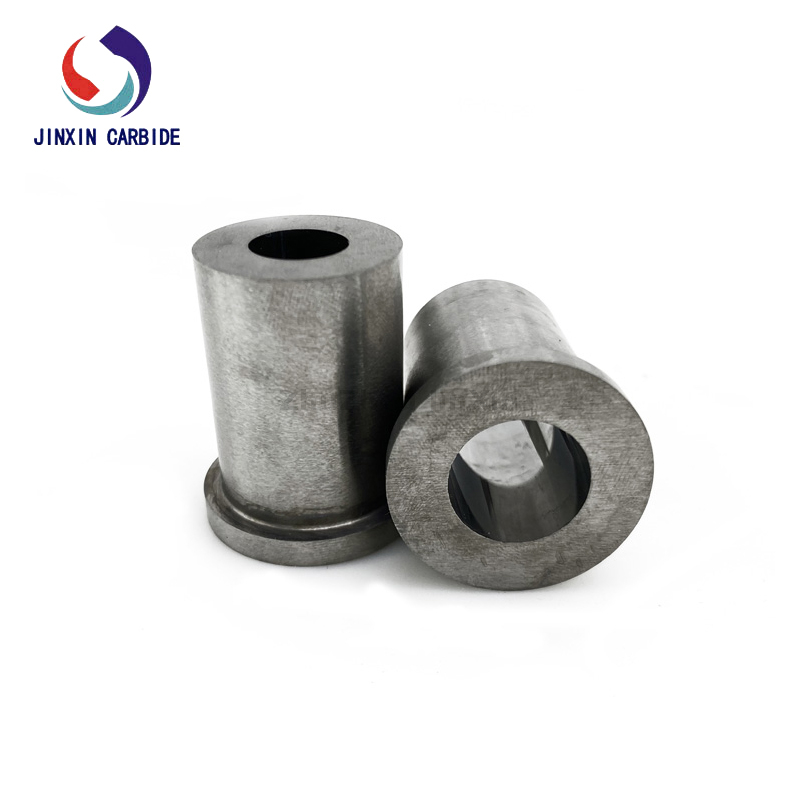

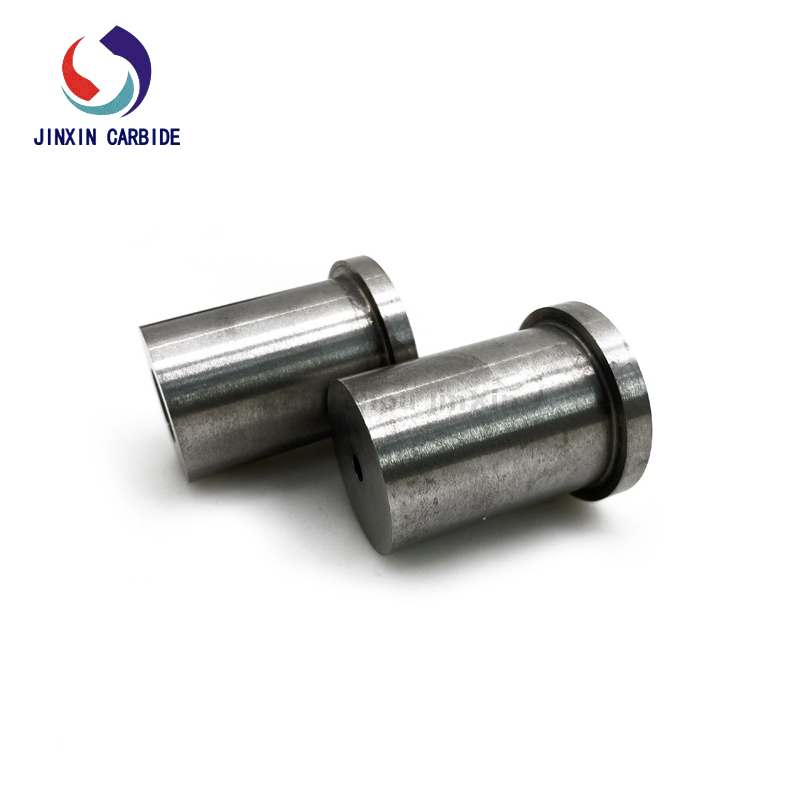

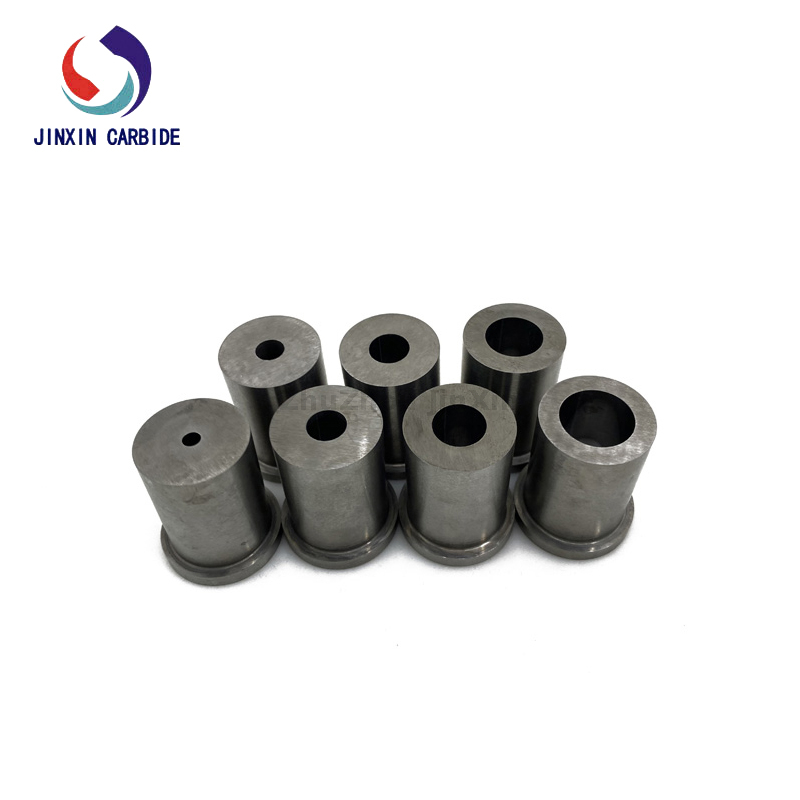

Tungsten Carbide Choke Beans
The Choke Beans are manufactured precisely to in the choke diameter and all fluid flows through it. It is usually made from Stainless Steel Body and Tungsten Carbide Liner. The Tungsten Carbide liner is very critical to the tool life and performance of the choke beans.
On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-132 inch, Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.
Feature:
1. 100% Interchangeable with Cameron H2 Chokes.
2. Choke bean size: 4/64" ~ 192/64" increment with 1/64".
3. Both ceramic liner and tungsten carbide liner are all available.
4. Medium: oil and gas water, sand.
5. Customizable size.
The Function of the Carbide Liners in the Choke Beans is that the Tungsten Carbide Liner can work well in the high pressure, high wear, high abrasive and erosion working Condition.
