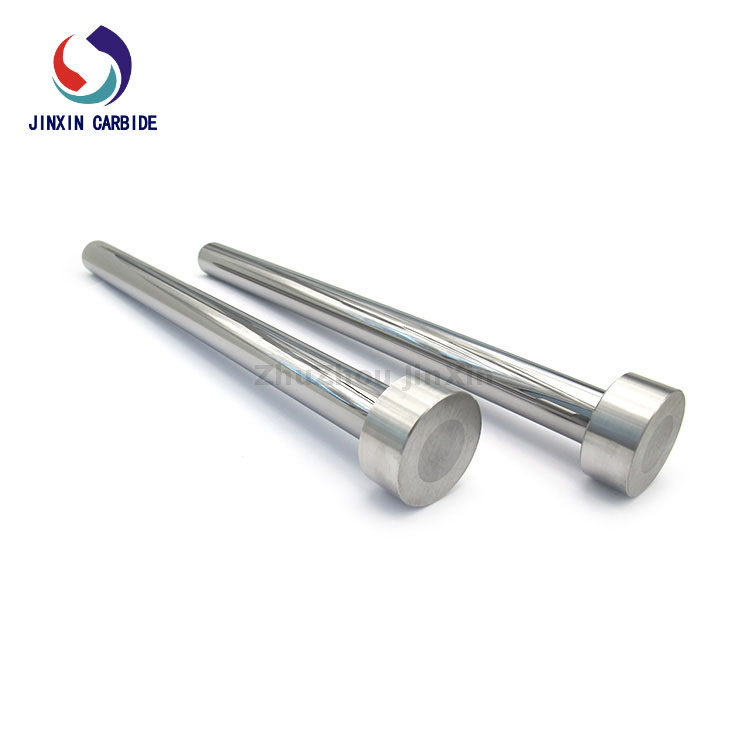

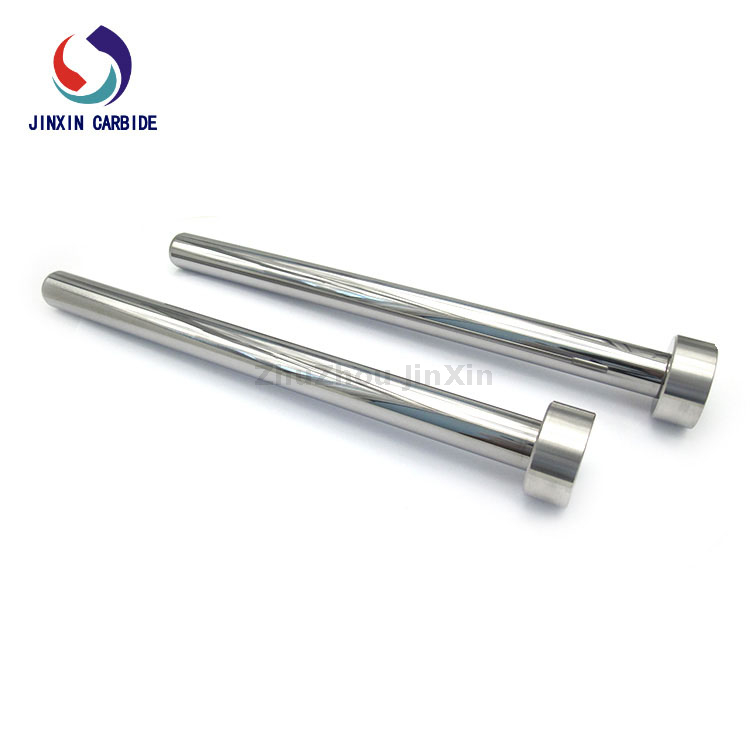

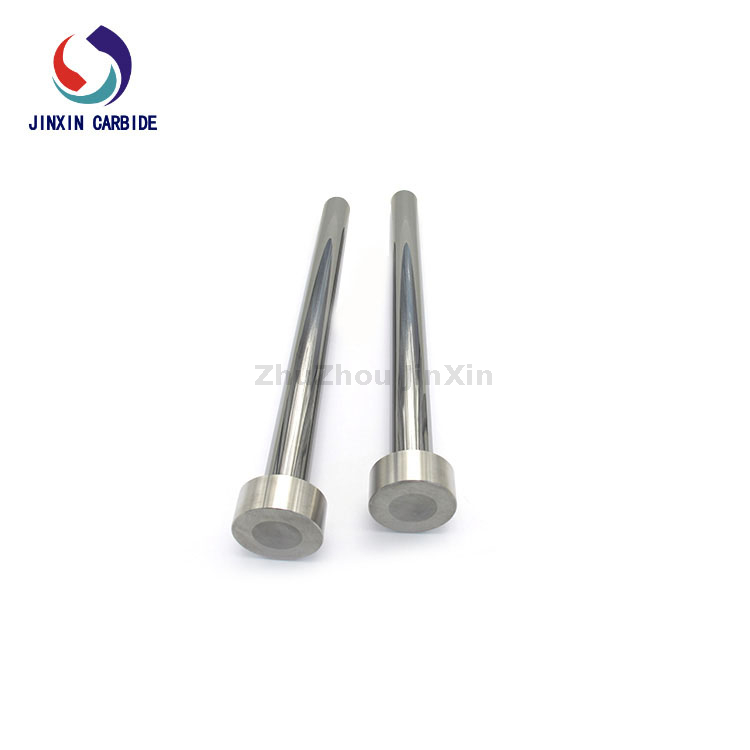

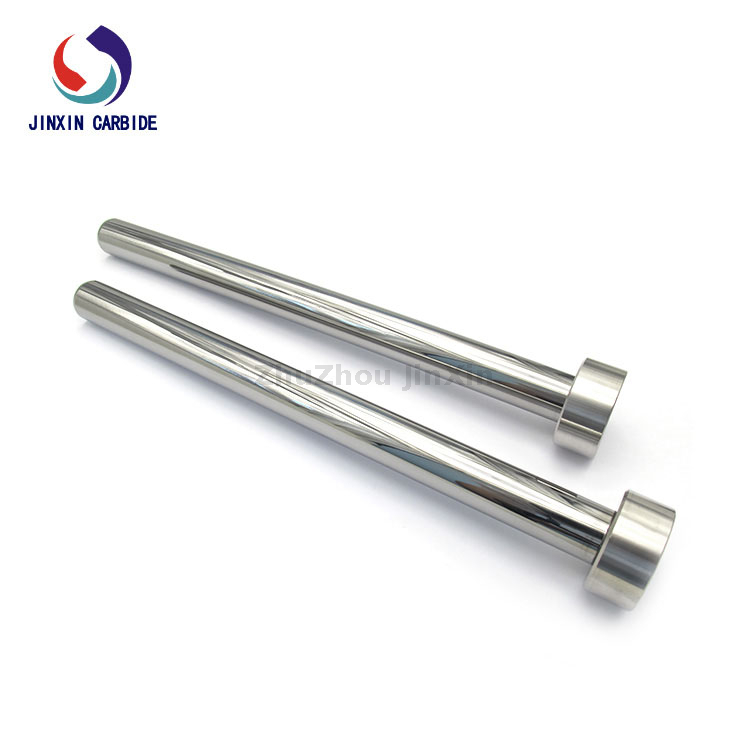

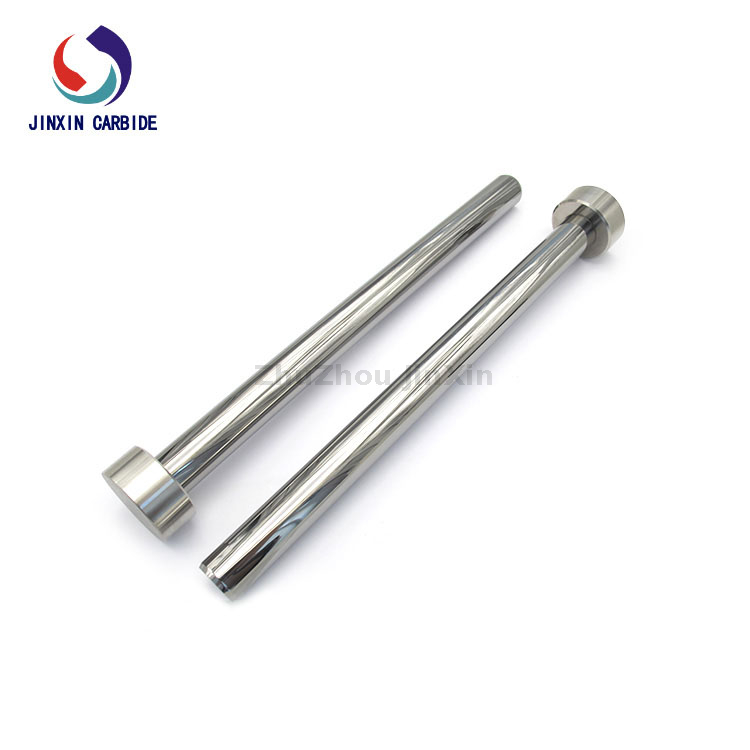

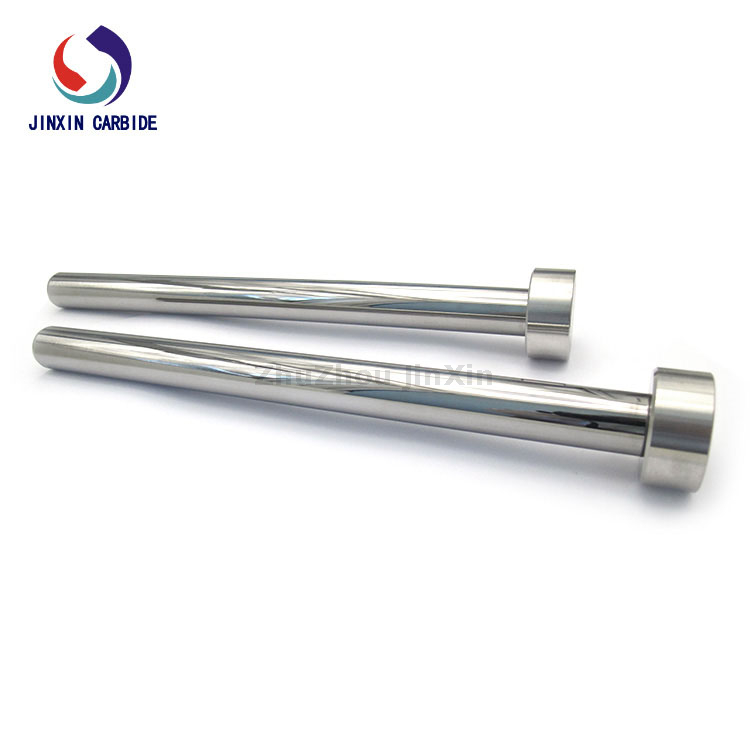

Cemented Tungsten Carbide Plunger for High-Pressure Pump
1. Material: WC+Ni/WC+Co
2. Grade:YN8 YG11 YG8
3. Features: Wear Resistance, Corrosion Resistance,High Precision, long lifetime
4. Surface finishing: Ra0.2-0.4
5. Straightness:0.005
6. Hardness: HRA89-90 Bending strength:3500
7. Technology: HIP sintering
Tolerance is the most important for tungsten carbide plunger, because the plunger is used in a high-pressure water pump, and the water pump needs high air pressure. In order to prevent the water pump from air leaking, it is required that the tungsten carbide plunger and the hole need to have good air tightness. tungsten carbide plunger from TUNGSTEN MAN, length tolerance: 0,+0.05mm outer diameter +0,+0.01mm tolerance: surface finish: Surface Finish: Ra 0.2 -Ra 0.4.
Advantages for Cemented Tungsten Carbide Plunger from Zhuzhou Jinxin
1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing
7. We have professional technician team and sales team, giving you professional suggestion
4. Abundant experience accumulation in serving TOP 10 companies in Oil & Gas Industry:
a, Flexible payment term
b, Expedite communications
c, Quick and Professional Response
