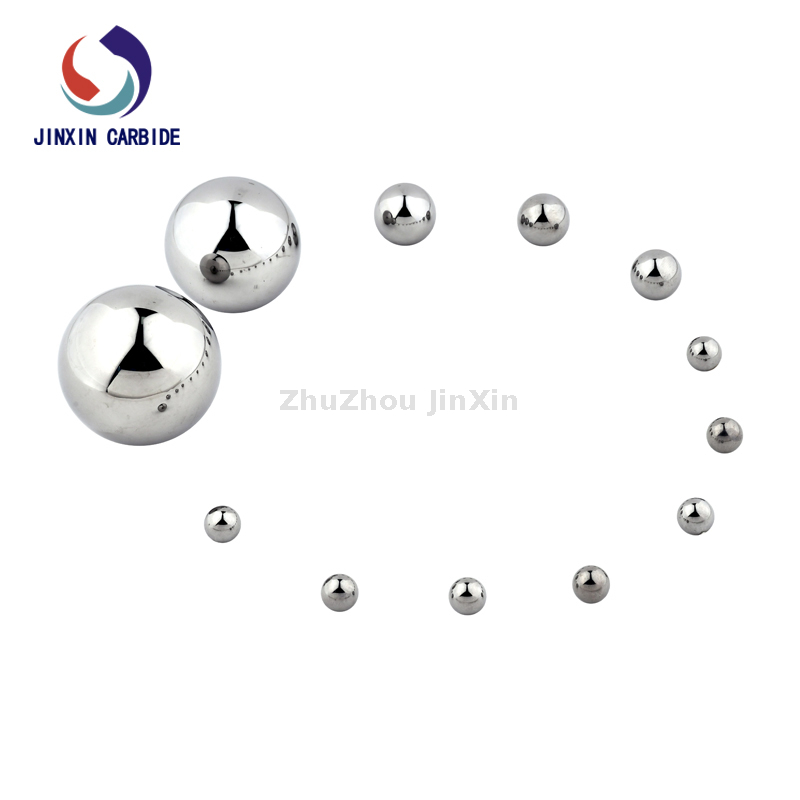

Tungsten carbide balls are ideal for applications where extreme hardness must be accompanied by high resistance to wear and impact. They are well-suited to elevated temperatures, corrosion, humidity, abrasion, and poor lubrication conditions.titanium ballThe balls are made from 100% virgin tungsten carbide material.
Tungsten carbide balls are widely used in the manufacture of oil well drill bits due to their high hardness and wear resistance. This drill bit can drill efficiently in complex formations and improve oil extraction efficiency.In addition to drill bits, tungsten carbide balls can also be used to manufacture key components of other drilling equipment, such as drill pipes, drill collars, etc., to improve the overall performance and durability of the equipment.In the oil industry, tungsten carbide balls are also often used as materials for valves and seals. Its high hardness and corrosion resistance enable valves and seals to maintain stable sealing performance under harsh working conditions.
Advantages of Jinxin
Tungsten carbide ball from Zhuzhou Jinxin has High hardness and dimensional stability make tungsten carbide balls the preferred choice for precision hydraulic valves, high-load bearings, inertial navigation systems, ball screws, linear bearings in slideways, gauging and checking instruments, and meters. Tungsten carbide balls are also used for ballizing, to work-harden and improve fretting fatigue strength.
| Model/Item | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| Ball-D +0.020/-0.010 (+0.51/-0.25) | 15.88 (0.625in) | 19.05 (0.75in) | 23.83 (0.938in) | 28.58 (1.125in) | 31.75 (1.25in) | 34.93 (1.375in) | 42.88 (1.688in) | 57.15 (2.25in) |
| Seat-ID ± 0.050 (± 1.27) | 11.68 (0.46in) | 13.97 (0.55in) | 17.02 (0.67in) | 20.96 (0.825in) | 24.38 (0.96in) | 26.92 (1.06in) | 33.27 (1.31in) | 43.18 (1.7in) |
| Seat-OD +0.000/-0.005 (+0.00/-0.13) | 20.14 (0.793in) | 23.32 (0.918in) | 29.67 (1.168in) | 35.26 (1.388in) | 37.54 (1.478in) | 43.69 (1.72in) | 51.05 (2.01in) | 78.03 (3.072in) |
| Seat-H +0.020/-0.010 (+0.51/-0.25) | 12.70 (0.500in) | 12.70 (0.500in) | 12.70 (0.500in) | 12.70 (0.500in) | 12.70 (0.500in) | 12.70 (0.500in) | 12.70 (0.500in) | 19.05 (0.750in) |
| 10600 | 12500 | 15000 | 17500 | 20000 | 22500 | 25000 | 37500 | ||
| D (customized) | Inch | 0.625 | 0.725 | 0.938 | 1.125 | 1.250 | 1.375 | 1.688 | 2.250 |
| mm | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 | |
| H -0.020/-0.010 (+0.51/0.25) | Inch | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| mm | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 | |
| FZ +0.000/-0.031 (+0.00/-0.78) | Inch | 0.767 | 0.892 | 1.11 | 1.331 | 1.421 | 1.631 | 1.921 | 2.950 |
| mm | 19.48 | 22.66 | 28.22 | 33.81 | 36.09 | 41.43 | 48.79 | 74.93 | |
| OD +0.000/-0.005 (-0.00/-0.13) | Inch | 0.793 | 0.918 | 1.168 | 1.388 | 1.478 | 1.720 | 2.010 | 3.072 |
| mm | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 | |
| ID +/-0.050 (+/-1.27) | Inch | 0.460 | 0.550 | 0.670 | 0.825 | 0.960 | 1.060 | 1.310 | 1.700/1.800 |
| mm | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18/47.75 | |
| Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| Ball-D +0.020/-0.010 (+0.51/-0.25) | 15.88 (0.625in) | 19.05 (0.75in) | 23.83 (0.938in) | 28.58 (1.125in) | 31.75 (1.25in) | 34.93 (1.375in) | 42.88 (1.688in) | 57.15 (2.25in) |
| Seat-ID ± 0.050 ( ± 1.27) | 11.68 (0.46in) | 13.97 (0.55in) | 17.02 (0.67in) | 20.96 (0.825in) | 24.38 (0.96in) | 26.92 (1.06in) | 33.27 (1.31in) | 43.18 (1.7in) |
| Seat-OD +0.000/-0.005 +0.00/-0.13 | 20.14 (0.793in) | 23.32 (0.918in) | 29.67 (1.168in) | 35.26 (1.388in) | 37.54 (1.478in) | 43.69 (1.72in) | 51.05 (2.01in) | 78.03 (3.072in) |
| Seat-H +0.020/-0.010 (+0.51/-0.25) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.500 (12.70in) | 0.750 (19.05in) |
| Type and specifications | |||||||
| Dia. | Inch | 3/4 | 7/8 | 15/16 | 1 | 1 1/8 | 1 3/16 |
| mm | 19.05 | 22.225 | 23.813 | 25.4 | 28.575 | 30.163 | |
| Inch | 1 1/4 | 1 3/8 | 1 1/2 | 1 5/8 | 1 11/16 | 1 3/4 | |
| mm | 31.75 | 34.925 | 38.1 | 41.275 | 42.863 | 44.45 | |
| Inch | 2 | 1 1/4 | 2 1/2 | ||||
| mm | 50 | 50.8 | 57.15 | 60 | 63.5 | ||
| The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry: G5, G10, G16, G40 and G100 G1000of JB/T 9145-199 | |||||||
| Seats sizes(mm) | ||
| Outer diameter | Inner diameter | Height |
| 19.48 | 11.68 | 12.7 |
| 22.66 | 13.97 | 12.7 |
| 28.22 | 17.02 | 12.7 |
| 33.81 | 20.96 | 12.7 |
| 36.09 | 24.38 | 12.7 |
| 41.43 | 26.92 | 12.7 |
| 48.79 | 33.27 | 12.7 |
| 74.93 | 43.18 | 19.05 |
