Zhuzhou Jinxin Tungsten carbide rod are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YL10.2, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.
Tungsten Carbide Rods are manufactured as standards with one, two, or three holes, straight or twisted to a 30 or 40 degree helix, or solid with no holes. All rods are available in standard lengths of 310 and 330 mm. Custom lengths available by request.
Specificaiton: Diameter:1.5~40 mm x 330mm
Surface Condition: Sintered blank
Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%
Density: 14.2~14.6 g/cm3
Hardness: HRA91.5 min.
T.R.S.: 3200N/mm2 min.
Tungsten carbide rod specification from Zhuzhou Jinxin
Specifications of Unground tungsten carbide rods:
Unground carbide rods-length<100mm
Unground Carbide Rods-length 100~150mm
Unground carbide rods-length 310mm
Unground carbide rods-length 330mm
Unground Carbide Rods- Lengttungsten-carbide-rodsh 13" (Inch)
Specifications of Ground tungsten carbide rods:
Ground Carbide Rods ISO h6- length<100mm
Ground Carbide Rods ISO h6- Length 100~150mm
Ground Carbide Rods ISO h6 (Inch)
Milling Cutting Blanks ISO h6, Chamfered one end
Other size for tungsten carbide buttons
Properties of tungsten carbide buttontungsten carbide button
1. Cemented carbide/tungsten/spherical button
2. Wearing resistance good
3. Best suited to hard rock
4. Abrasive to very abrasive

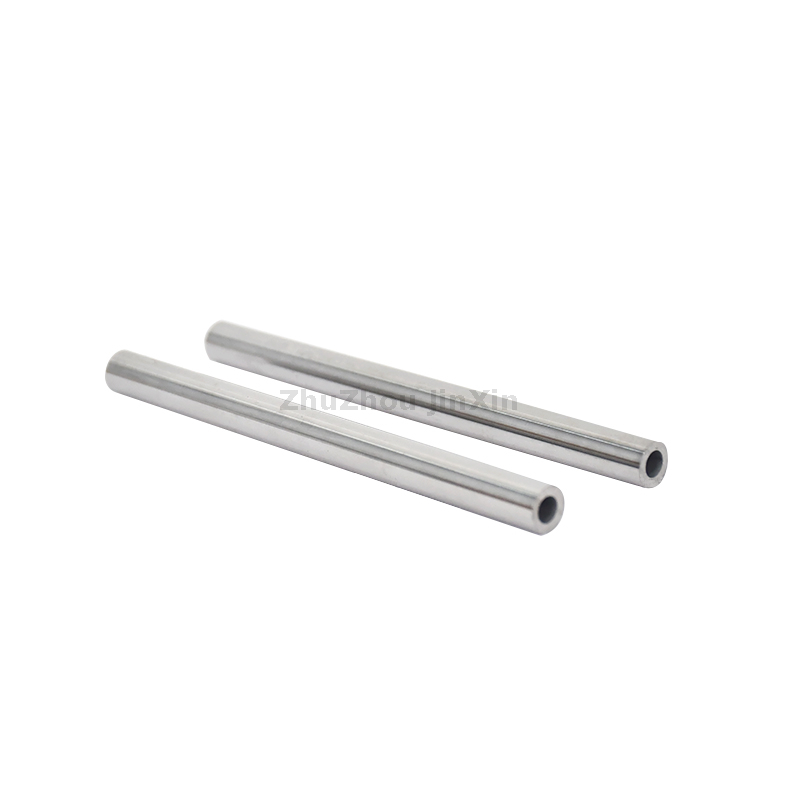

Tungsten carbide rod
Tungsten carbide rods include rods with the shapes of round, rectangular and square, solid rods and rods with one or more straight or coolants. The grades are mostly fine and super fine grain with high performance.
Purpose: Fine performance, suitable for processing of non-ferrous metal, plastic materials, carbon fiber, chilled cast iron and heat-resistant alloy steel, high-temperature alloy steel, stainless steel, high manganese steel, etc. Used in the manufacture of various metals and non-metal cutting tools such as drills, end mills, reamers. Also widely used in stamping tools and wear-resistant tools, etc.
