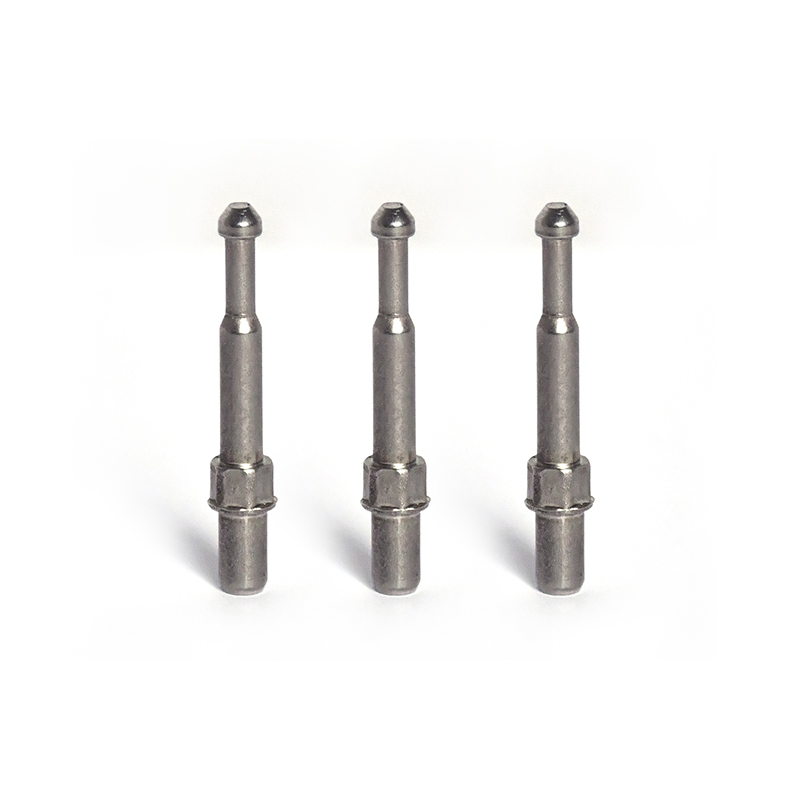

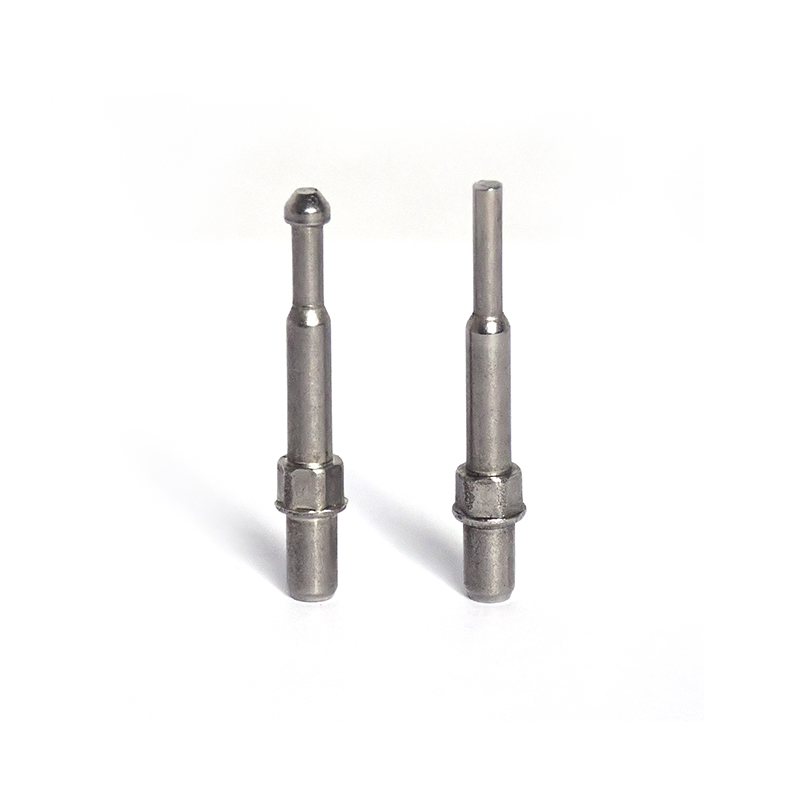

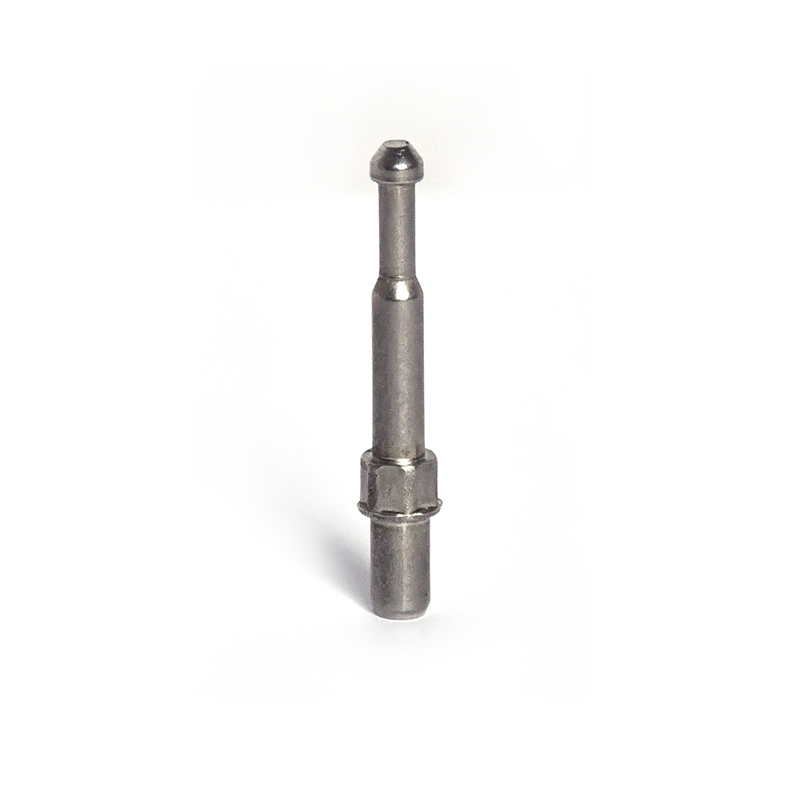

Ball Head Multi Step Dowel Pin
Ball Head Dowel Pin is a type of precision fastener used to align and secure components in machinery, fixtures, and other mechanical assemblies. It features a cylindrical body with a rounded (ball) head at one end. Here’s a detailed overview of ball head dowel pins:
Cylindrical Body: The main body of the dowel pin is cylindrical, providing a precise fit in drilled holes to ensure accurate alignment of components.
Ball Head: One end of the pin has a rounded, ball-shaped head. This head facilitates easier insertion and removal of the pin, as well as providing a finished appearance.
Steel: Commonly made from high-carbon or alloy steel, providing strength and durability.
Stainless Steel: Offers excellent corrosion resistance, making it suitable for harsh environments.
Other Materials: Can also be made from brass, aluminum, or plastic, depending on the application requirements.
Plain: No additional coating, suitable for general use.
Heat-Treated: Hardened for increased wear resistance.
Plated: Coated with materials like zinc or chrome for enhanced corrosion resistance and aesthetic appeal.
Standard Ball Head Dowel Pin: The most common type, used for general alignment and securing purposes.
Shoulder Ball Head Dowel Pin: Features a shoulder beneath the ball head, providing a positive stop for precise positioning.
Tapered Ball Head Dowel Pin: The body of the pin is slightly tapered to provide a tighter fit in the hole.
Machinery: Used to align and secure components in machinery and equipment.
Fixtures and Jigs: Ensures precise alignment in manufacturing fixtures and jigs.
Automotive: Used in engine assemblies, transmissions, and other automotive components.
Electronics: Provides alignment in electronic assemblies and devices.
General Manufacturing: Used in various manufacturing processes to ensure accurate component alignment.
Precision Alignment: Ensures accurate alignment of components, critical for proper functioning of machinery and assemblies.
Ease of Installation and Removal: The ball head facilitates easier insertion and removal of the pin.
Durability: Made from high-strength materials, providing long-lasting performance.
Versatility: Available in various materials and finishes to suit different applications and environments.
Ball head dowel pins are manufactured to meet specific industry standards, such as:
ISO (International Organization for Standardization)
DIN (Deutsches Institut für Normung)
ANSI (American National Standards Institute)
BS (British Standards)
