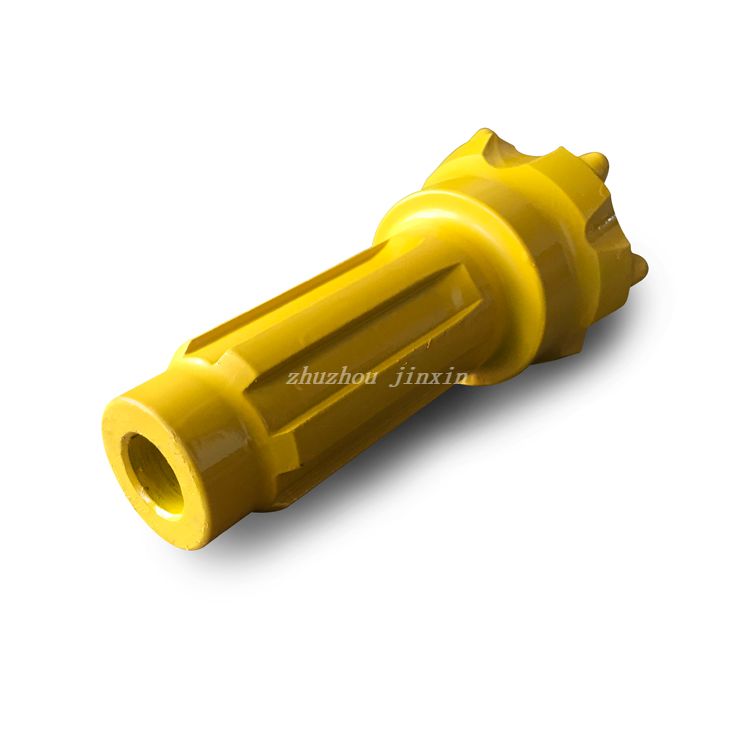

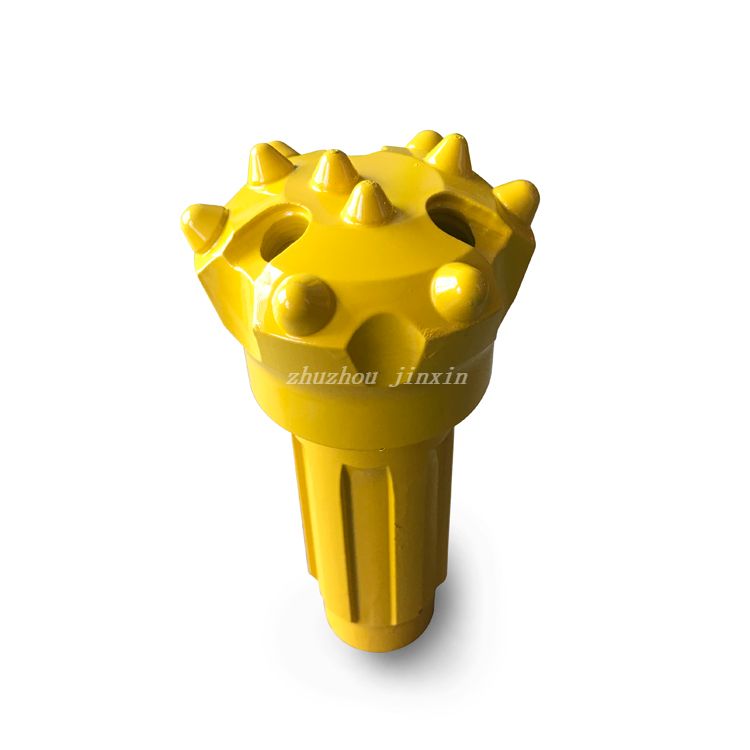

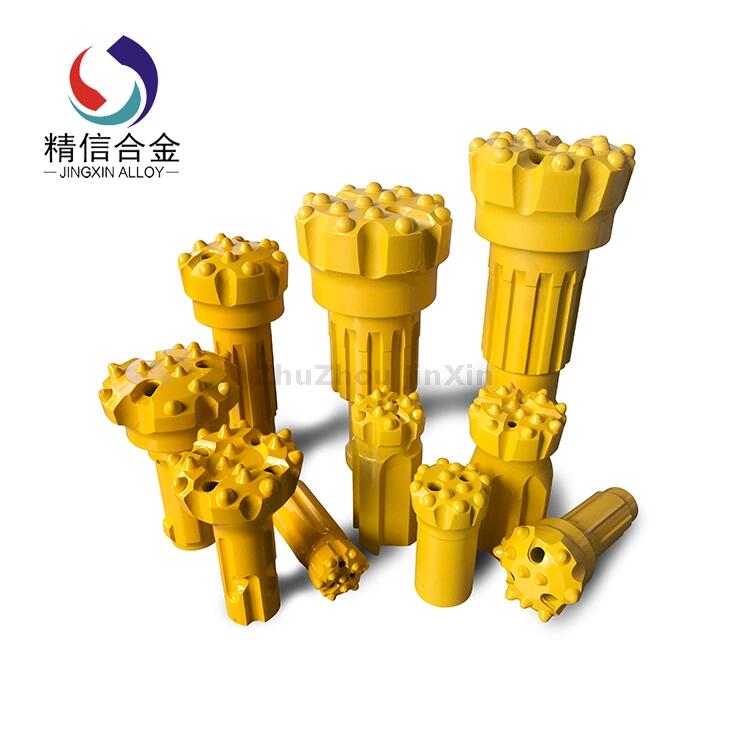

Down the hole(DTH) tools manufacturer Zhuzhou Jinxin supply DTH Drill Bits are available in a wide range of sizes and with a number of custom design features for optimum performance in a rock formation, which are designed to match all conceivable application for water well industries, mining and construction.
| Specification of dth hammer button bits: | Diameter: (mm) |
1-2 inch low air pressure DTH bits Shank: BR1, BR2, DHD2.5 | 57/64/70/76/80/82/90 |
3 inch high Air pressure DHT bits Shank: BR3,DHD3.5,COP34,COP32,QL30,M30,IR3.5 | 85 / 90 / 95 / 100 / 105/110 |
4 inch high Air pressure DHT bits Shank:DHD340,COP44,M40,SD4,QL40 | 105 / 110 / 115 / 120 / 127/130 |
5 inch high Air pressure DHT bits Shank:DHD350,COP54,M50,SD5,QL50 | 133 / 140 / 146 / 152 / 165 |
6 inch high Air pressure DHT bits Shank:DHD360,M60,SD6,QL60,COP64 | 152 / 165 / 178 / 190 / 203 |
8 inch high Air pressure DHT bits Shank:DHD380,COP84,M80,SD8,QL80 | 195 / 203 / 216 / 254 / 305 |
10 inch high Air pressure DTH bits Shank:SD10, NUMA100 | 254/270/279/295/305 |
12 inch high Air pressure DTH bits Shank:SD12,DHD1120,NUMA120,NUMA125 | 305/330/343/356/368/381 |
Any questions about DTH mining bit,please feel free to contact us.
