Tungsten Carbide Rods Round Blank And Finished Bar

Zhuzhou Jinxin Tungsten carbide rod are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YL10.2, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.
Availability:
wechat sharing button
sharethis sharing button

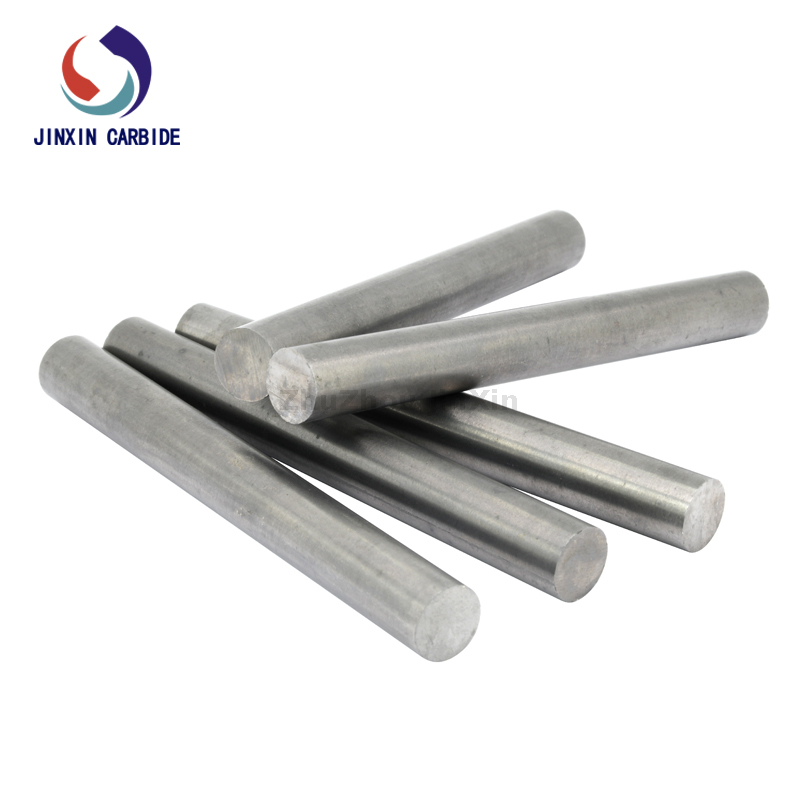

Tungsten Carbide Rod And Bar

Zhuzhou Jinxin Tungsten carbide rod are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YL10.2, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.


  • Specificaiton: Diameter:1.5~40 mm x 330mm

  • Surface Condition: Sintered blank

  • Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%

  • Density: 14.2~14.6 g/cm3

  • Hardness: HRA91.5 min.

  • T.R.S.: 3200N/mm2 min.


carbide rod (3)

carbiderod2

Other size for tungsten carbide buttons

Properties of tungsten carbide buttontungsten carbide button

1. Cemented carbide/tungsten/spherical button

2. Wearing resistance good

3. Best suited to hard rock

4. Abrasive to very abrasive


圆棒组合 (6)

carbiderod3

carbiderod4


ZHUZHOU JINXIN
