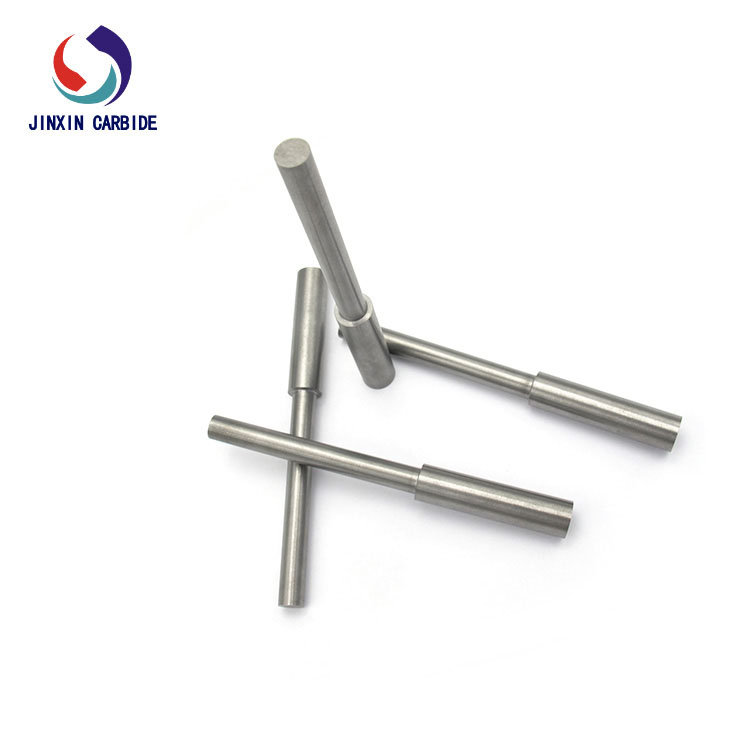

Tungsten Carbide Punching Needle
Depending on the material and thickness of the stamping, different tungsten carbide should be selected for the punching needle. Generally, the thicker the product being stamped, the lower the hardness and better toughness of the tungsten carbide should be chosen. The harder the material, the lower the hardness of tungsten steel, which can effectively prevent the punching needle from being punched out. For stamping thinner sheets or those with low hardness, tungsten carbidel punching needles with higher hardness can be used for hole processing, which can improve the service life of the punching needles.

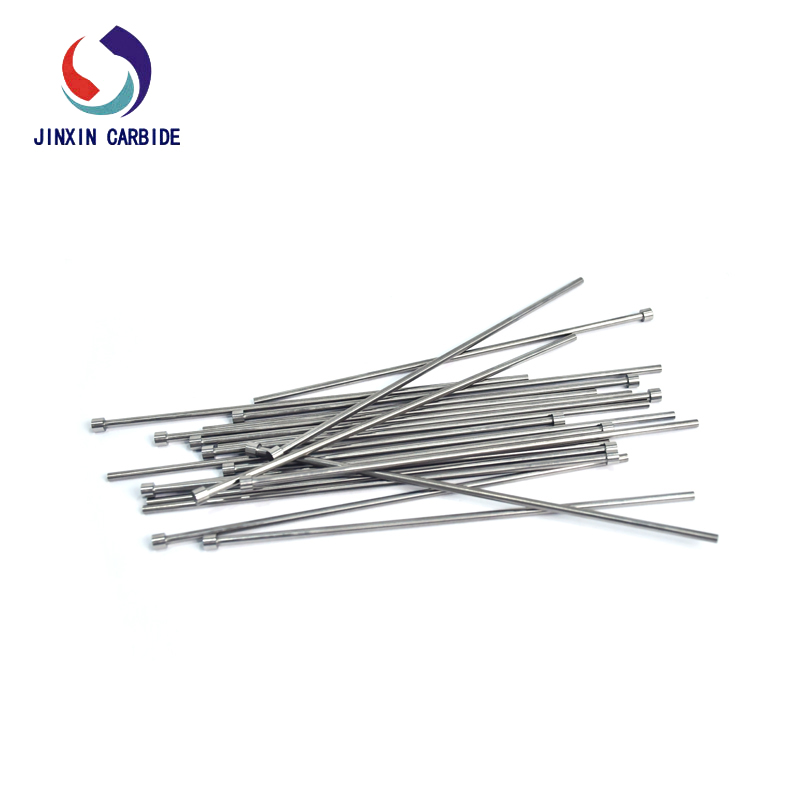

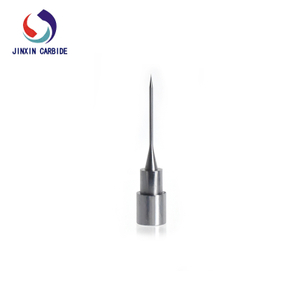

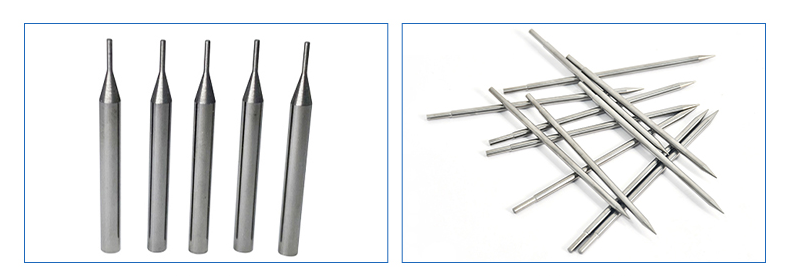

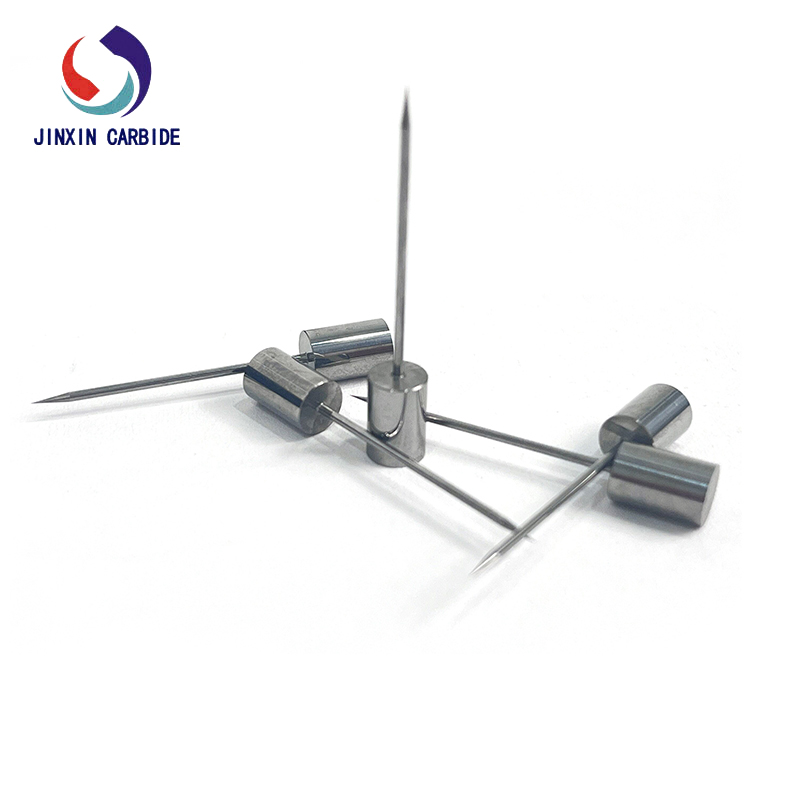

Tungsten Carbide Thimble Carbide Punching Pin
① Density g/cm3: 14.5
② Hardness HRA: 91.5
③ Co content: 10%
④ Grain size: 1.0um
⑤ Bending strength N/mm2: ≥ 2800
⑥ Thermal expansion coefficient 10-6/0C: 4.9
⑦ Elastic modulus GPa: 525
Tungsten carbide stamping dies are used in cold stamping to process materials (metal or non-metal) into parts (or semi-finished products). Stamping - is a pressure processing method that uses a mold installed on a press machine to apply pressure to materials at room temperature, causing them to separate or undergo plastic deformation, in order to obtain the desired parts.
The mold installed on the press is directly in contact with the material (metal or non-metal) after assembling mold accessories such as punching needles, causing the material to separate or undergo plastic deformation, thereby obtaining the required parts.
Tungsten carbide stamping dies are essential process equipment for stamping production and are technology intensive products. The quality, production efficiency, and production cost of stamped parts are directly related to the precision and quality of mold design and mold accessories.
